Multi-touch LCD Kiosk Home > Products > 75 Inch Free Standing Outdoor Digital Signage

75 Inch Free Standing Outdoor Digital Signage:

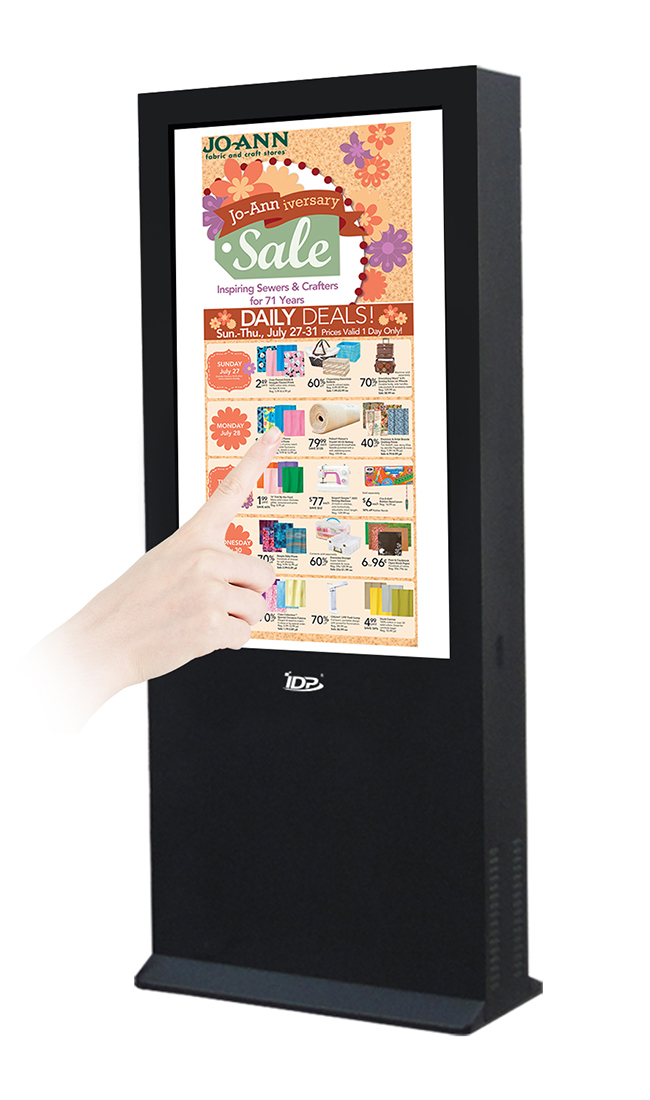

75 Inch Free Standing Outdoor Digital Signage

Model: ID751PAF -Android Version, ID751PXF - PC Version

At the beginning people went to change the advertisement in each digital signage(device, hereinafter) one by one. Assuming there are 800 devices, it will be time-and-labor consuming. In order to solve this problem, one embedded solution came out. It connected the devices together to a server by wifi – network lcd advertising display. Actually it was not good enough, especially when the wifi signal is weak or there are too many devices.

With the improvement and popularization of Android OS, the light of real network digital signage appeared. The Android digital signage(device, hereinafter) is a perfect solution for remotely management. First Connect the devices to the internet either by wifi, LAN or 3G. Second open your pc and deliver the advertisement to the devices easily, no matter where the devices they locate. The stable Android OS makes the device work 7/24 hours safe and sound.

What’s more the Android system provides an access to users which make it possible to customize personalized applications.

Thanks to technology progress, the outdoor lcd display becomes more and more reliable. By integrated the digital signage solution and outdoor design, it extends the lcd digital signage from indoor to outdoor, a vast market demand.

Main features:

**Smart forced air cooling system or air-conditioner system to ensure stable and reliable performance.

**IP75(customizable) design outdoor digital signage, waterproof, vandal proof, sun readable.

**High brightness up to from 1500 cd/m2 to 4500 cd/m2, or even higher.

**Suitable for various kinds of outdoor environment, such as snow, desert, shore etc, and support operation temperature from -40 Celsius to +55 Celsius.

1. Auto play back advertisement after power on, no need operation manually.

2. Support split screen, one screen window is divided into several sections for different usages.

3. Scrolling message, the pre-set message can be displayed.

4. Play HD 1080P videos and pictures.

5. Remotely manage devices in different locations by internet(*).

6. Support online video dreaming(*).

7. Easy upgraded if the advertisement business layout changes(*).

8. Support more apps with the upgrade of Android OS(*).

9. Optional functions: touch screen, 3G, customized Android apps(*).

10. OEM/ODM service: digital signage enclosure, functions etc.

11. Available size: 42 inch, 46 inch, 47 inch, 55 inch, 65 inch, 70 inch, 75 inch, 85 inch.

Applications:shopping street, plaza, gas station, entrance of store, university, industrial park, sports event field, citizen park, scenic spot, CBD area etc.



Panel Data

Panel Brand

For Samsung/LG


75 inch

Native Resolution


Aspect Ratio



Antiglare, hard coating

Active Area

1428.5(H) X 803.5(V)  mm

Dot Pitch

0.248(H) X 0.744(V) mm



Contrast Ratio


Display Colors


Response Time


View Angle




Network Data(*)


ARM Cortex Quad Core 1.8G Hz






Android 4.1/4.2 or above

Video decoding

HD H.264 2160p video decoding
Multi-format FHD(1920x1080P) video decoding


Integrated HI-FI 100dB Audio Codec

Picture format




Main I/O

HDMI x1, VGA x1, SD/TF slot x1, USB x2, RJ45 x1


Built-in Wifi(802.11b/g/n)

General Information

Image Resolution

5000 x 5000 px Max

Video Resolution

1920 x 1080p Max


Silver, Black, White or Customized


Fine Aluminum + AR safe glass


10W x2

Remote Control

IR Remote Control

Menu Language

English, Germany, Russian, French and Spanish etc

Power Supply

AC 110 ~ 240V

Operation Temperature

-40 ~+55

Operation Humidity

5% ~ 100%

Operating Altitude

0~3,000 meters

Storage Temperature

-50 ~60

Storage Humidity

0 ~ 90%


Free Standing

Remarks: 1. (*) means the functions are for network version.

2.  The specification is subject to change without notice in advance.
